Sites / Haghia Triada

HT 9b

Site
Haghia Triada
Support
tablet
Period
LM IB
Sign count
26, by SigLA's count
Source
lineara.xyz and SigLA

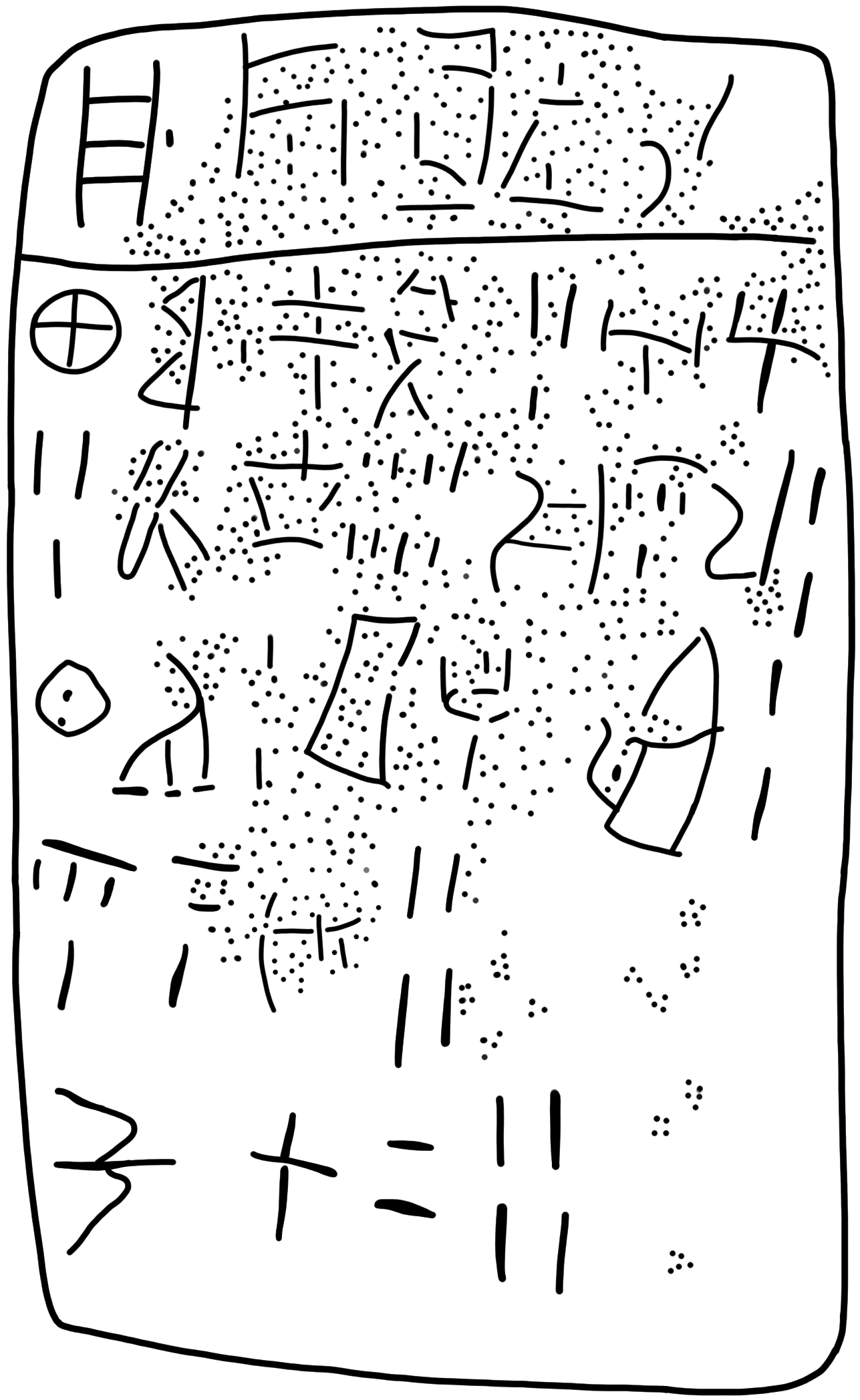

Tracing

Tracing of HT 9b
Sign drawings from SigLA: The Signs of Linear A, a palaeographical database, by Ester Salgarella and Simon Castellan (https://sigla.phis.me/), licensed under CC BY-NC-SA 4.0.

Signs in reading order

  1. Sign AB56, HT 9b, position 1 AB56
  2. Sign AB54 wa TELA, HT 9b, position 2 AB54 wa TELA
  3. Sign AB57 ja, HT 9b, position 3 AB57 ja
  4. Sign AB39 pi, HT 9b, position 4 AB39 pi
  5. Sign ?, HT 9b, position 5 ? (uncertain)
  6. Sign AB77 ka, HT 9b, position 6 AB77 ka
  7. Sign A305, HT 9b, position 7 A305
  8. Sign AB03 pa, HT 9b, position 8 AB03 pa
  9. Sign AB45 de, HT 9b, position 9 AB45 de
  10. Sign AB08 a, HT 9b, position 10 AB08 a
  11. Sign AB41 si, HT 9b, position 11 AB41 si
  12. Sign A306, HT 9b, position 12 A306
  13. Sign AB69 tu, HT 9b, position 13 AB69 tu
  14. Sign A324, HT 9b, position 14 A324
  15. Sign AB07 di, HT 9b, position 15 AB07 di
  16. Sign AB60 ra, HT 9b, position 16 AB60 ra
  17. Sign AB78 qe, HT 9b, position 17 AB78 qe
  18. Sign AB50 pu, HT 9b, position 18 AB50 pu
  19. Sign AB59 ta, HT 9b, position 19 AB59 ta
  20. Sign AB28 i, HT 9b, position 20 AB28 i
  21. Sign AB123 AROM, HT 9b, position 21 AB123 AROM
  22. Sign AB07 di, HT 9b, position 22 AB07 di
  23. Sign AB06 na, HT 9b, position 23 AB06 na
  24. Sign AB10 u, HT 9b, position 24 AB10 u
  25. Sign AB81 ku, HT 9b, position 25 AB81 ku
  26. Sign AB02 ro, HT 9b, position 26 AB02 ro

26 of 5,145 sign occurrences in the SigLA tracings on this site belong to HT 9b.

Text

  1. line 1 AB56|
  2. line 2 wa_TELA AB54ja AB57pi AB39?
  3. line 3 ka AB77A305|
  4. line 4 pa AB03de AB453
  5. line 5 a AB08si AB413
  6. line 6 A306tu AB698
  7. line 7 A324di AB07ra AB602
  8. line 8 qe AB78pu AB502
  9. line 9 ta AB59i AB28AROM AB1232
  10. line 10 di AB07na AB06u AB104
  11. line 11 ku AB81ro AB0224

1 of 49 slots in the sign-by-sign text of this record are damaged, shown as question marks.

Words

wa-ja-pi-sign not identifiedka-*305pa-dea-si*306-tu*324-di-raqe-puta-i-*123di-na-uku-ro

Tap a word to follow it onto every other document that carries it.

A sign with a dashed underline is one SigLA marks as unsure. An empty box is a sign SigLA does not identify, or has not classified.

Numbers

The numbers of HT 9b, line by line
LineWordAmount
Line 1 *56 (the heading) (no amount)
Line 2 wa-ja-pi (damaged here) (no amount)
Line 3 ka-*305 (no amount)
Line 4 pa-de 3
Line 5 a-si 3
Line 6 *306-tu 8
Line 7 *324-di-ra 2
Line 8 qe-pu 2
Line 9 ta-i, 2
Line 10 di-na-u 4
Line 11 ku-ro, the total 24

Line 11, ku-ro: 3 + 3 + 8 + 2 + 2 + 2 + 4 = 24, and the total says 24. The whole numbers balance. The clay is damaged in these lines.

In our ku-ro audit of 13 August 2026, the total on line 11 balances exactly. Every ku-ro total, side by side.

Photograph against tracing

The comparator needs JavaScript. It stacks the photograph, the facsimile and the tracing of HT 9b in one frame.

Data

Download HT 9b as JSON

Every document on this site downloads as JSON. The file holds the id, the site, the words, every line as sign labels, the numbers, and a link to each sign crop. No glyph codepoints are in it, on purpose (fonts draw modern shapes, and the shapes are the evidence). Take it.
